GT1565-VTBD

GT1565-VTBD

Mitsubishi
$894.60

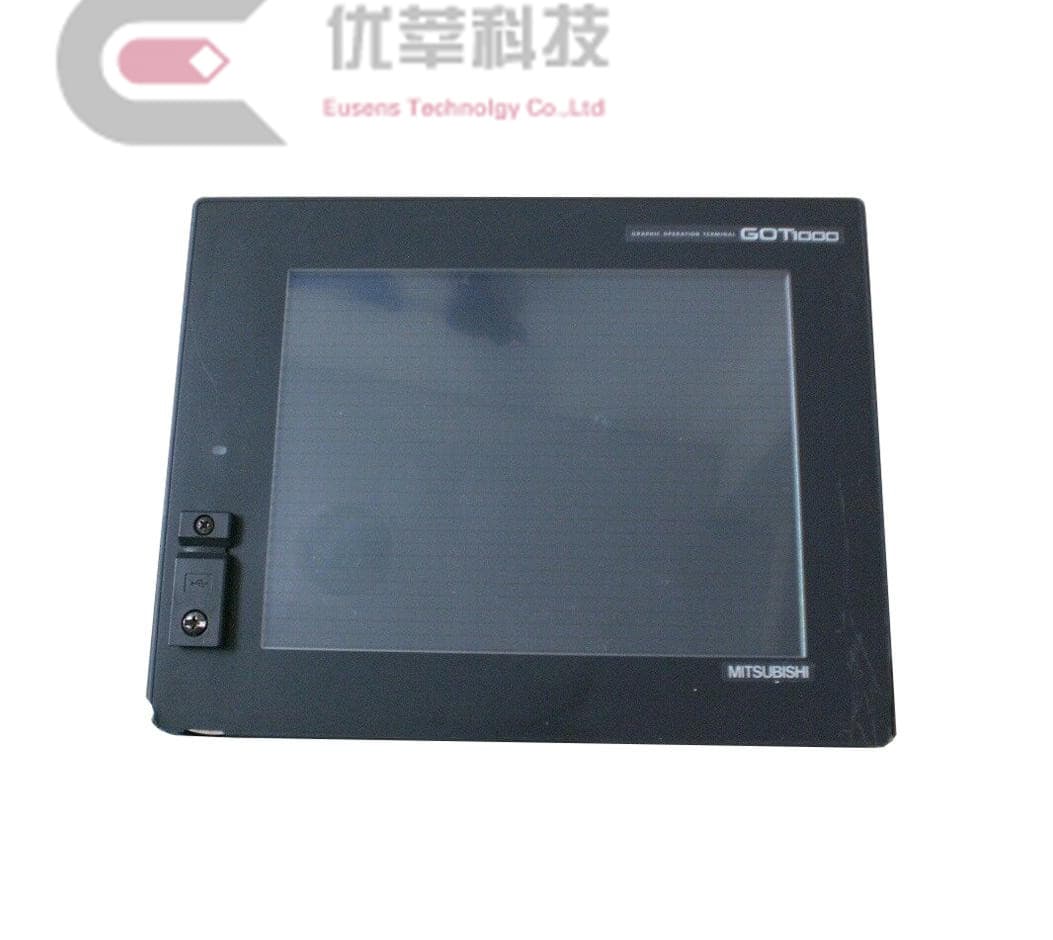

GT1565-VTBD -- Mitsubishi Electric -- GOT1000 Series Touch Screen HMI

Product Description

  • Estimated Lead Time :_7-10 working days.
  • Manufacturer : Mitsubishi Electric
  • Product No. : GT1565-VTBD
  • Product type : GOT1000 Series.
  • Type : TFT color liquid crystal (LCD of high indensity and wide angle view)
  • Screen size : 8.4"
  • Resolution : 640 _ 480 dots
  • Display size : 171(6.73)(W) _ 128(5.04)(H) [mm](inch)
  • Display color : 256color/65536color
  • Backlight : Cold cathode fluorescent tube (replaceable) backlight shutoff detection function is included. Backlight off/screen saving time can be set.
  • Number of touch keys : 1,200 objects/screen (Matrix structure of 30 lines x 40 columns)
  • Memory : C drive = Built-in flash memory 9Mbytes (for storing project data and OS)
  • Battery : GT15-BAT lithium battery (Option)
  • Buzzer output : Single tone (tone length adjustable)
  • Input power supply voltage : DC19.2 to 30.0V (+25%, -20%)
  • Power consumption : 26W or less
  • External dimensions : (Excluding USB environmental protection cover) 24.1(9.49)(W) _ 19(7.48)(H) _ 5.2(2.05)(D) [cm](inch)
  • Panel cutting dimensions : 22.7(8.94)(W) _ 17.6(6.93)(H) [cm](inch)
  • Weight : 1.9 Kg (mounting fixtures are not included)
  • Shipping weight : 3 Kg
