STD725-E1AC4AS-1-0-AHS-11C-B

STD725-E1AC4AS-1-0-AHS-11C-B

Honeywell
$908.10

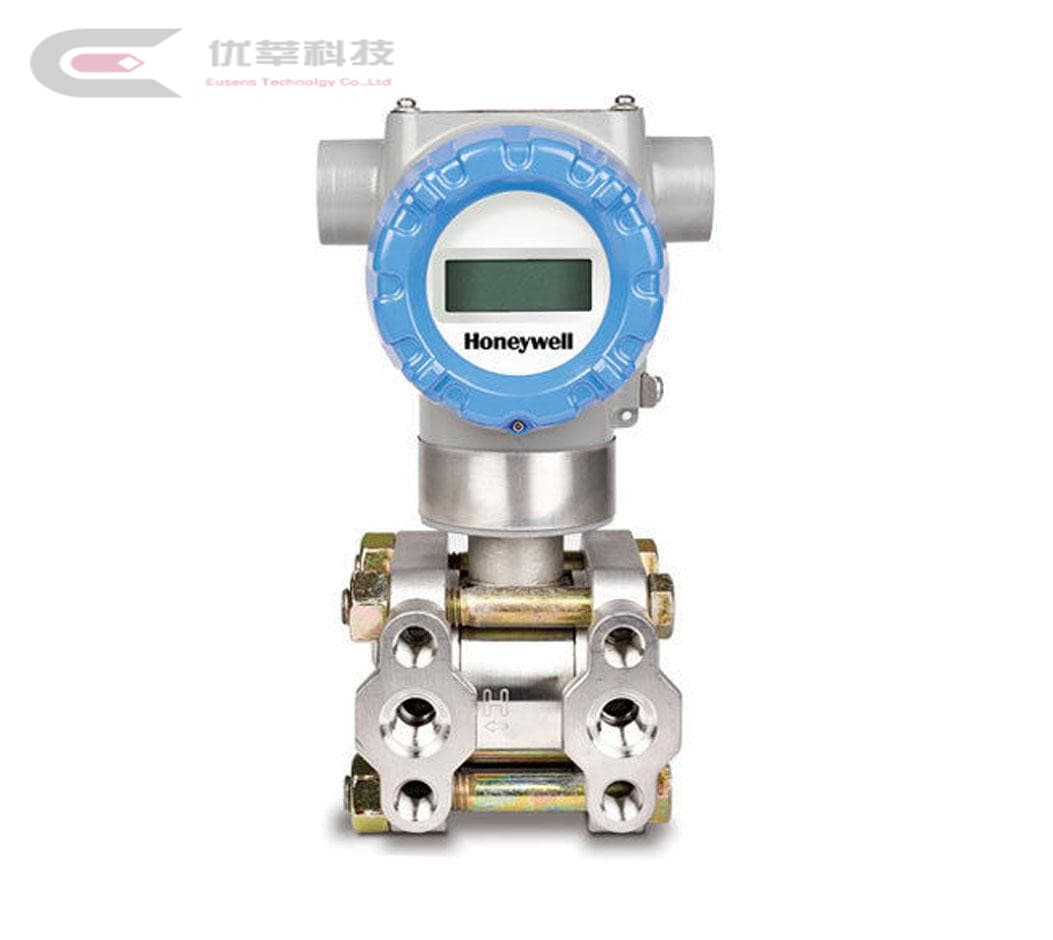

STD725-E1AC4AS-1-0-AHS-11C-B -- Honeywell -- STD700 Differential Pressure Transmitter

Product Description

  • Estimated Lead Time : 6 - 8 weeks.
  • Manufacturer : Honeywell
  • Product No. : STD725-E1AC4AS-1-0-AHS-11C-B
  • Product type : STD700 Differential Pressure Transmitter
  • Measurement Range : STD 725 - URL = 400/(1000), LRL = -400/(-1000), Max Span = 400/(1000), Min Span = 4.0 (10), Units = " H2O (mbar).
  • Process Wetted Heads & Diaphragm Materials : E = 316 Stainless Steel , 316L Stainless Steel
  • Fill Fluid : 1 = Silicone Oil 200
  • Process Connection : A = None, None (1/4" NPTF female thread Std)
  • Bolt/Nut Materials : C = Carbon Steel
  • Vent/Drain Type/Location/Vent Material : 4 = Dual Ended/Standard Vent /End/ Matches Head Materia
  • Gasket Material : A = Teflon搴 or PTFE (Glass Filled)
  • Static Pressure : S = Standard Static Pressure - 4500 psig (315 bar)
  • Head/Connect Orientation : 1 = Standard High Side Left, Low Side Right2 / Std Head Orientation
  • Approvals: 0 = No approvals required
  • Electronic Housing Material & Connection Type : A = Polyester Powder Coated Aluminium, 1/2NPT.
  • Output/ Protocol : H = Analog Output : 4-20mA dc, Digital Protocol : HART Protocol.
  • Customer Interface Selections : S = Indicator : Standard (w/internal Zero,Span & Config Buttons), language : english.
  • Application Software : 1 = Standard diagnostic
  • Output Limit, Failsafe & Write Protect Settings : 1 = Write Protect : Disabled, Fail Mode : High> 21.0mAdc, High & Low Output Limits : Honeywell Std (3.8 - 20.8 mAdc)
  • General Configuration : C = Custom Configuration (Unit Data Required from customer)
  • Accuracy and Calibration : B = Accuracy : Standard, Calibrated range : Factory Std, Calibration Qty : Single Calibration.
  • Dimensions (HxWxD), approx : 19.88 cm X 12.59 cm X 11cm
  • Weight : 4kg
  • Shipping Weight : 6 Kg
