STF73F-41AS4A-T00-0-AHC-13C-B-01A0-F1-0000

STF73F-41AS4A-T00-0-AHC-13C-B-01A0-F1-0000

Honeywell
$1652.40

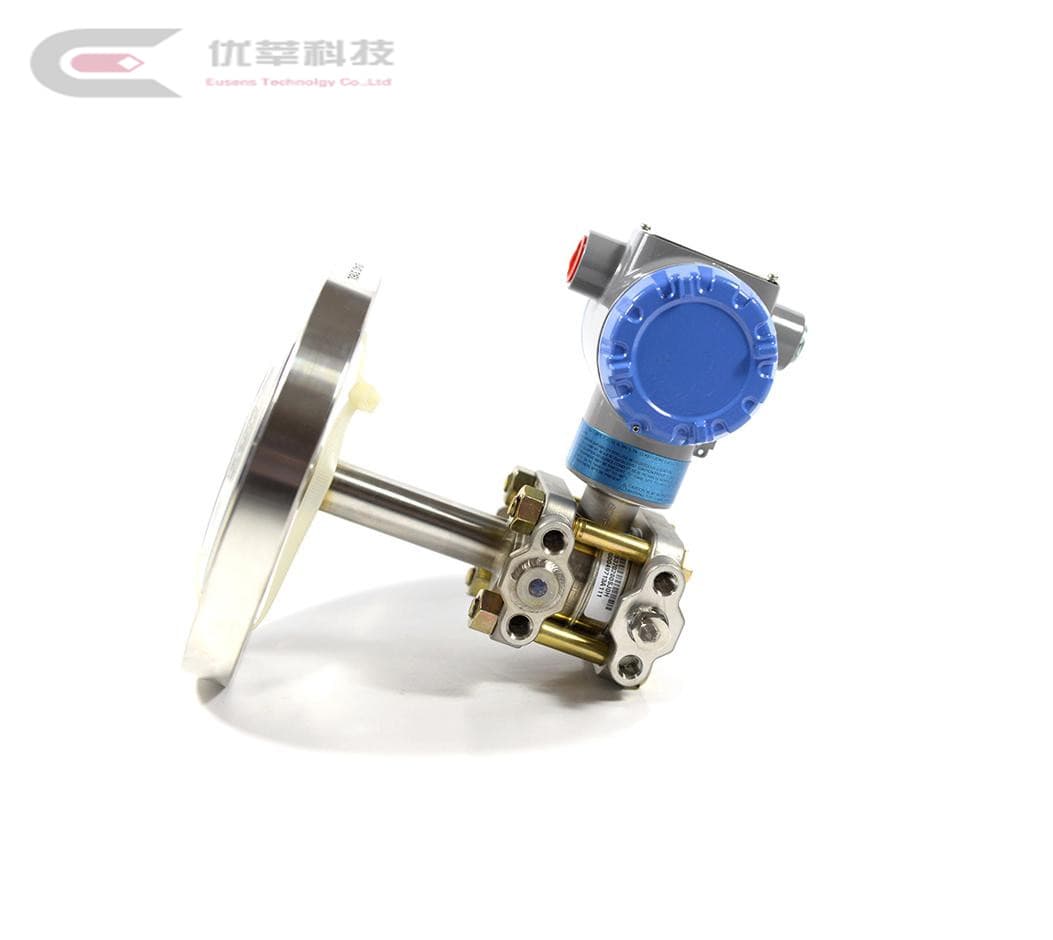

STF73F-41AS4A-T00-0-AHC-13C-B-01A0-F1-0000 -- Honeywell -- SmartLine Flange Mounted

Product Description

  • Estimated Lead Time : 8 - 10 weeks.
  • Manufacturer : Honeywell
  • Product No. :_借_STF73F-41AS4A-T00-0-AHC-13C-B-01A0-F1-0000
  • Product type : SmartLine Flange Mounted
  • 4- Process Wetted Heads & Diaphragm Materials
  • Design : Pseudo Flange
  • Ref.Head : 316 SS
  • Vent Drain Valve on Ref. Head 2 : 316 SS
  • Barrier Diaphrm. (wetted) : 316L SS
  • Diaphrm. Plate (wetted) : N/A
  • Extension (wetted) : N/A
  • 1- Fill Fluid : Silicone Oil 200
  • A- Process Connection
  • Reference Head : 1/4 NPT
  • Range : High Pressure Side
  • S- Bolts for Process Heads : 316 SS Bolts_借_
  • 4- Vent/Drain Type/Location_
  • Ref. Head : Dual Ended_
  • Type Vent : std
  • Type Location : end
  • Vent Material : Matches Head Material
  • A-_ Gasket Material : Teflon搴 or PTFE (Glass Filled)
  • T-_ Flange
  • Pseudo Flange on Standard DP : 2" ANSI Class 150 with Vent/Drain
  • Flange Material : 316L SS (wetted)
  • Threaded Nut Ring Material : Not Applicable
  • 0- Gasket ring (wetted) : No Selection
  • 0- Extension (wetted) : No Selection
  • 0- Approvals : No Approvals Required
  • A-_ Electronic Housing Material & Connection Type_
  • Material : Polyester Powder Coated Aluminum
  • Connection : 1/2 NPT
  • Lightning Protection : None
  • H- Output/ Protocol_
  • Analog Output : 4-20mA dc
  • Digital Protocol : HART Protocol
  • C- Customer Interface Selections
  • Indicator : Basic_
  • Ext Zero, Span & Config Buttons : yes
  • Languages : english
  • 1- Application 3F Software : Standard diagnostics
  • 3- Output Limit,Failsafe & Write Protect Settings
  • Write Protect : Enabled
  • Fail Mode : High> 21.0mAdc
  • High & Low Output Limits : Honeywell Std (3.8 - 20.8 mAdc)_
  • C- General Configuration : Custom Configuration (Unit Data Required from customer)_借_
  • B- Accuracy and Calibration
  • Accuracy : Standard
  • Calibrated Range : Custom (Unit Data Required)_
  • Calibration Qty : Single Calibration
  • 0- Mounting Bracket : None (not required with flange mount unit)_
  • 1- Customer Tag : One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)_
  • A0- Unassembled Conduit Plugs & Adapters : No Conduit Plugs or Adapters Required
  • F1- Certifications & Warranty : Calibration Test Report & Certificate of Conformance (F3399) F_
  • 0000- Factory : Factory Identification
  • Shipping weight : 10 Kg
