STG74S-E1G000-1-0-AHS-11S-A-10A0

STG74S-E1G000-1-0-AHS-11S-A-10A0

Honeywell
$691.20

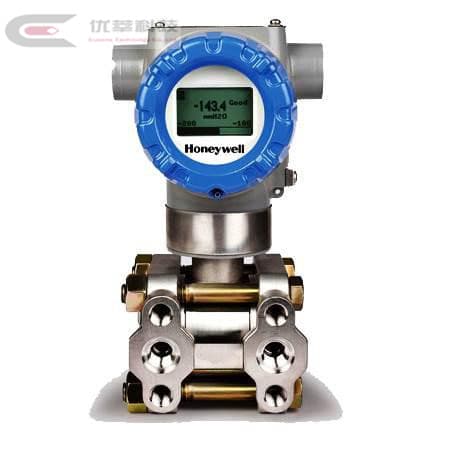

STG74S-E1G000-1-0-AHS-11S-A-10A0 -- Honeywell -- SmartLine Gauge Pressure Transmitters

Product Description

  • Estimated Lead Time : 4-6 Weeks
  • Manufacturer : Honeywell
  • STG74S-E1G000-1-0-AHS-11S-A-10A0
  • Model : STG74S 500 psi (35 bar)
  • LRL : -14.7 psi (-1.0 bar) 5 psi (.35 bar)
  • Maximum Turn down Ratio : 100:1
  • Stability (% URL/Year for five years) : 0.025%
  • Reference Accuracy (% Span)1,2: 0.0650%
  • STG74S-
  • E-Head & Diaphragm Materials:-RL/Max Span : 500 (35)LRL : -14.7 (-1.0)Min Span : 5 (.35)Units : psi (bar)
  • 1-Head & Diaphragm Materials: Silicone Oil 200
  • G-Process Connection : Size/Type : 1/2" NPT (female)Material : Same as Process Head 1a
  • 0-Process Connection : Size/Type : None0-Vent/Drain Type/Location : NoneHead Type : NoneVent Type : NoneLocation : NoneVent Material : None
  • 1-Head/Connect Orientation : Standard, High Side Left, Ref Side Right2 / Std Head Orientation
  • 0-Approvals: No Approvals Required
  • A-Electronic Housing Material & Connection Type :-Material : Polyester Powder Coated AluminumConnection : 1/2 NPTLightning Protection:None
  • H-Output/Protocol :-Analog Output:4-20mA dcDigital Protocol : HART Protocol
  • S-Customer Interface Selections :-Ext Zero,Span & Config Buttons : NoneLanguages : EN
  • 1-Application Software : Standard Diagnostics1-Output Limit,Failsafe & Write Protect Settings :-Write Protect : DisabledFail Mode : High> 21.0mAdcHigh & Low Output Limits3 : Honeywell Std (3.8 - 20.8 mAdc)
  • S-General Configuration : Factory Standard
  • A-Accuracy and Calibration :-Accuracy : StandardCalibrated Range: Factory StandardCalibration Qty : Single Calibration
  • 1-Mounting Bracket
  • Bracket Type : Angle Bracket
  • Material : Carbon Steel
  • 0-No customer tag
  • A0-No Conduit Plugs or Adapters Required.
  • Net Weight STG700 Inline: 3.6 pounds (1.6 Kg) with Aluminum Housing
  • Shipping Weight : 3 Kg
